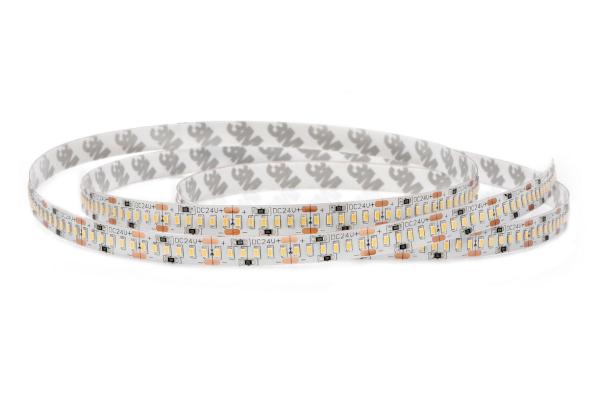

    3014 204LEDs/m High densityNatural White High Lumen LED Strips Lighting 24.5W IP20

    Ask Lasest Price
    Brand Name : LEDCORP
    Model Number : LC204-N3014-W/WW
    Certification : ISO9001:2008, ISO9001:2015
    Price : Welcome to your inquiry
    Payment Terms : T/T , PayPal
    Supply Ability : 500,000mters per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    3014 204LEDs/m High densityNatural White High Lumen LED Strips Lighting 24.5W IP20

    Slim 3014 Natural White High Lumen LED Strips Lighting 24.5W IP20 204 LED


    Product advantages:

    • Color Consistency, only one bin
    • High Efficacy, 90-165lm/w
    • High CRI, 80+,90+,95+
    • Color purity: we use quality chip, phosphor golden wires and copper holder, make the SDCM<4
    • Long Lifespan: >35000 Hrs
    • No dark and uninterrupted Led strip
    • High brightness, low decay, low power consumption, LM-80 Tested
    • Be able to give soul space, and increase the dynamics of the space, making the space brighter.

    Features:

    • High lumen 3014SMD 204LED
    • 10mm PCB width
    • 1020led / reel , 5meters / reel
    • Warm white: 2400K / 2700K - 3000K,
    • Natural white: 4000K - 4500K,
    • White: 5000K - 5500K / 6000K - 6500K
    • Different connectors to connect the cut parts
    • 3M adhersive tape
    • OEM / ODM are welcomed.
    • Available in IP20

    Application area:

    • House ceiling lighting
    • Hotel room lighting
    • Indoor curve lighting
    • Restaurant decorative lighting
    • coffee shop, bar decorative lighting

    Technical details:


    Details

    Item

    Unit

    Specification

    Physical data

    LED type

    SMD

    3014SMD

    LED Qty /meter

    LED/m

    204

    Dimensions

    mm

    10*1.2*5000 (W*H*L)

    Type of protection

    IP

    IP20

    Working temperature

    °C

    -30°C - 60°C

    Electrical data

    Power

    W/m

    24.5W

    Voltage

    VDC

    24V

    Optical data

    Luminous flux

    Lm/m

    1800lm - 2400lm

    Beam angle

    degrees

    120

    Light color



    Warm white/Natural white/White

    Color BINs



    1 BIN

    Color temperature

    K

    Warm white:2400 / 2700-3000

    Natural white :4000-4500

    White: 5000-5500 / 6000-6500

    Color rendering index

    CRI

    80-90

    Order reference

    HS code

    94054090

    Part. no

    LC204-N3014-w/ww/nw-IP20-24

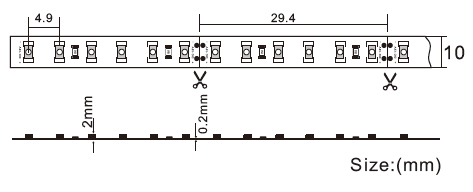

    Dimension:



    Installation:


    Packing details:


    Items

    Packaging unit

    meters per box

    reels per box

    Dimensions(mm) LxWxH

    Gross weight(kg)

    Volume(cbm)

    IP20 Strips

    One Pack

    5m

    1reel

    150*150*12

    0.11

    0.00027

    Shipping box

    500m

    100reel

    500*350*250

    12

    0.04375
