Waterproof Constant Voltage LED Driver Power Supply 250W CE RoHS

    Buy cheap Waterproof Constant Voltage LED Driver Power Supply 250W CE RoHS from wholesalers

    Buy cheap Waterproof Constant Voltage LED Driver Power Supply 250W CE RoHS from wholesalers
    • Buy cheap Waterproof Constant Voltage LED Driver Power Supply 250W CE RoHS from wholesalers
    • Buy cheap Waterproof Constant Voltage LED Driver Power Supply 250W CE RoHS from wholesalers

    Waterproof Constant Voltage LED Driver Power Supply 250W CE RoHS

    Ask Lasest Price
    Brand Name : LEDCORP
    Model Number : LCP-250-12/24
    Certification : ISO9001 , CE , RoHS
    Price : Negotiation
    Payment Terms : T/T , PayPal
    Supply Ability : 10,000pcs per month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Waterproof Constant Voltage LED Driver Power Supply 250W CE RoHS


    Waterproof Constant Voltage LED Driver Power Supply 250W CE RoHS

    Product Features:

    • IP67 design for indoor or outdoor installations
    • Protections: short circuit, overload, over temperature
    • Cooling by free air convection
    • 100% full load burn-in test
    • Suitable for LED lighting
    • Product through CE, RoHS certification
    • 2 years warranty

    Application:

    • Outdoor or indoor Led driver for signage, channel letter, decoration
    • Outdoor or indoor led driver for led modules, led strips, led panel lights, with constant voltage requirement.

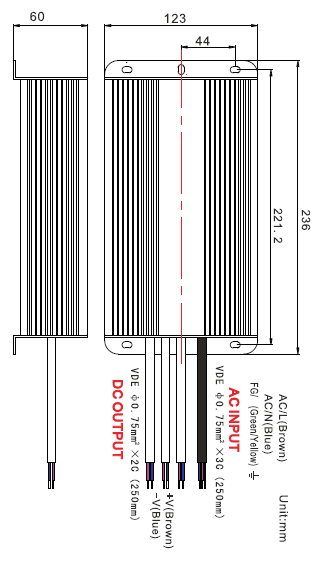

    Dimension:



    Technical specification:

    Part. No

    LCP-250-12

    LCP-250-24

    OUTPUT

    DC voltage

    12V

    24V

    Related current

    21A

    10A

    Current range

    0-21A

    0-10A

    Rated power

    250W

    250W

    Ripple&Noise(max)

    150mA

    150mA

    Voltage tolerance

    ±2%

    ±1%

    INPUT

    Setup time

    80ms/220VAC

    Hold up time

    60mS/220VAC

    Voltage range

    176-264VAc

    Frequency range

    50-60HZ

    Power factor

    PF>0.55/220VAC

    Efficiency

    82%

    84%

    AC current

    2.2A/220VAC

    Inrush current

    Cold start 50A/220VAC

    PROTECTION

    Short circuit

    Recovers automatically after condition is removed

    Overload

    Overload protected@115-140% above rating

    Over temperature

    Shut down o/p voltage, re-power on to recover

    ENVIRONMENT

    Working Temp

    —30℃to+50℃

    Working Humidity

    20-90% RH non-condensing

    Storage Temp

    —40℃to+80℃, 10-99%RH

    SAFETY & EMC

    Safety standards

    CE Mark (LVD), IP67

    Withstand voltage

    I/P-O/P:1.5KVAC I/P-GND:1.5VAC

    EMC test standards

    EN55015:2006; EN61547:1995+A1:2000; EN61000-3-2:2006;EN61000-3-3:1995+a2; EN61347-1:2001;EN61347-2-13:2006


    Packing details:

    Product Name

    HS code

    Size(mm)Weight

    Packaging unit

    Pieces per box

    Dimensions LxWxH

    Gross weight

    Volume

    Power supply

    94054090

    236*123*602.6kg/pcs

    Shipping carton box

    5pcs

    39*26*18cm

     13KG

    0.0234cbm
