High Lumen 3528 Bi Color LED Strips Ultra Bright Single Line 120 Degree Beam Angle

    Buy cheap High Lumen 3528 Bi Color LED Strips Ultra Bright Single Line 120 Degree Beam Angle from wholesalers

    Buy cheap High Lumen 3528 Bi Color LED Strips Ultra Bright Single Line 120 Degree Beam Angle from wholesalers
    • Buy cheap High Lumen 3528 Bi Color LED Strips Ultra Bright Single Line 120 Degree Beam Angle from wholesalers
    • Buy cheap High Lumen 3528 Bi Color LED Strips Ultra Bright Single Line 120 Degree Beam Angle from wholesalers

    High Lumen 3528 Bi Color LED Strips Ultra Bright Single Line 120 Degree Beam Angle

    Ask Lasest Price
    Brand Name : LEDCORP
    Model Number : LC240-NBS3528-TW
    Certification : ISO9001, CE/RoHS/UL
    Price : Welcome to your inquiry
    Payment Terms : T/T,PayPal
    Supply Ability : 500,000m per month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    High Lumen 3528 Bi Color LED Strips Ultra Bright Single Line 120 Degree Beam Angle

    High Lumen Bi Color LED Strips Ultra Bright Single Line 3528 240 TW.pdf

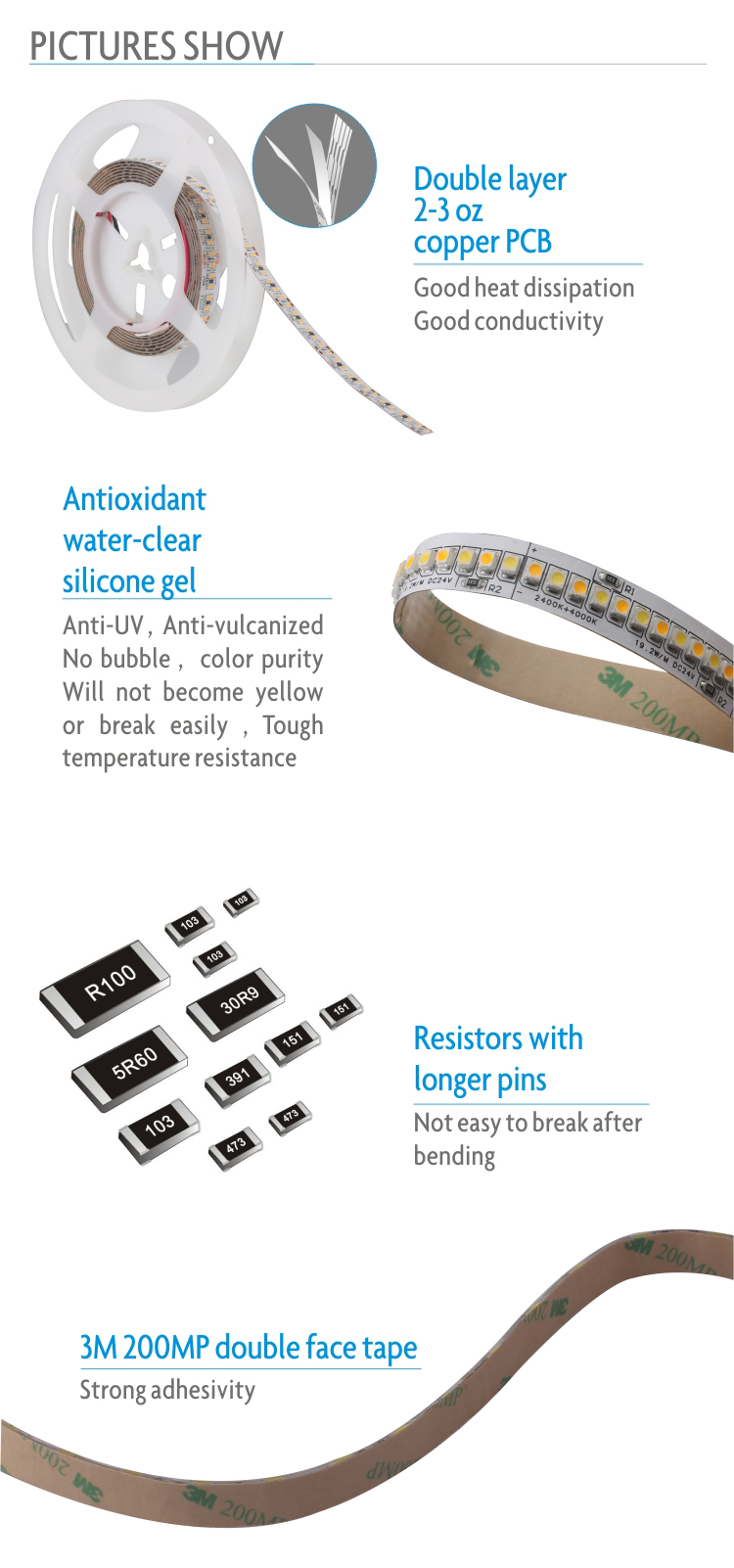

    Product advantages:

    • Color Consistency, only one bin
    • High Efficacy, 90-165lm/w
    • High CRI, 80+,90+,95+
    • Color purity: we use quality chip, phosphor golden wires and copper holder, make the SDCM<4
    • Long Lifespan: >35000 Hrs
    • No dark and uninterrupted Led strip
    • High brightness, low decay, low power consumption, LM-80 Tested
    • Be able to give soul space, and increase the dynamics of the space, making the space brighte

    Features:

    1. 3528 240LED Dual is 5m long flexible strip with 3528SMD 1200LED as source,15mm white PCB (2Oz) in 24V, 6 whites (2200-6500K) and colors of R/G/B/Y/A/O/P/PP options, from IP20 to IP67 rated with 3M or clips mounted easily.
    2. Silicone can be anti-UV, anti-fire, salt water resistant, extremely standing high and low temp.
    3. Taiwan dies, USA phosphor and latest technology make quality and color sense over time.
    IP20: bare, max. light output and the best color consistency, indoor use
    IP65: silicone dropped, ~5% less output and 3rd best color consistency, indoor use
    IP67: silicone cased, ~3% less output and 2nd best color consistency, indoor use.

    Application area:
    • Cove lighting
    • Architectural lights for canopy, archway
    • Backlight or edge lighting for signage
    • DIY lights for home use
    • Path and contour marking
    • Decorative lights for holiday, event, show, exhibition, hotel

    Technical details:


    Details

    Item

    Unit

    Specification

    Physical data

    LED type

    SMD

    3528SMD

    LED Qty /meter

    LED / M

    240

    Dimensions

    mm

    10*2.2*5000 (W*H*L)

    Type of protection

    IP

    IP20/IP65/IP66/IP67/IP68

    Working temperature

    °C

    0-40°C

    Electrical data

    Power

    W / M

    19.2W

    Voltage

    VDC

    12V / 24V

    Optical data

    Luminous flux

    Lm / M

    1676lm - 1728lm

    Beam angle

    degrees

    120

    Light color



    Warm white / Natural white / White

    Color BINs



    1 BIN

    Color temperature

    K

    Warm white:2400/2700-3000

    Natural white :4000-4500

    White: 5000-5500 / 6000-6500

    Color rendering index

    CRI

    80-90

    Order reference

    HS code

    94054090

    Part. no

    LC240-NB3528-TW-IP20-12/24-S

    LC240-WB3528-TW-IP65-12/24-S

    LC240-WB3528-TW-IP68-12/24-S


    Dimension:


    Installation:


    Packing details:


    Part No.

    Packaging unit

    meters per box

    reels per box

    Dimensions(mm) LxWxH

    Gross weight(kg)

    Volume(cbm)

    LC240-NS3528-XX-IP20

    One Pack

    5m

    1reel

    150*150*12

    0.11

    0.00027

    Shipping carton box

    500m

    100reel

    500*350*250

    12

    0.04375

    LC240-WS3528-XX-IP65/IP68

    One Pack

    5m

    1reel

    220*220*13

    0.22

    0.00063

    Shipping carton box

    250m

    50reel

    500*350*250

    12

    0.04375
